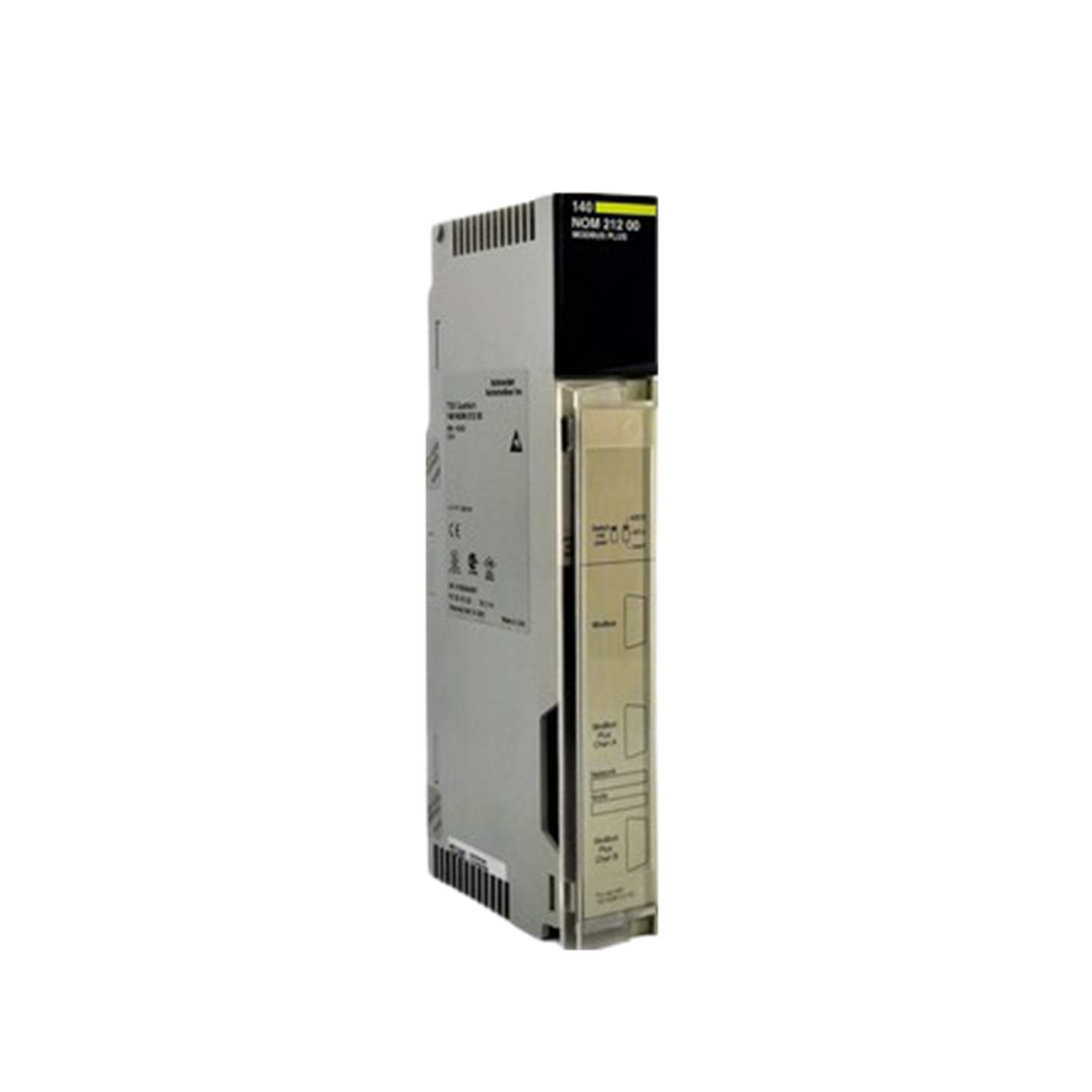

140NOM21200C
Schneider Electric
Overview
The 140NOM21200C is a DIO head-end adaptor in the Modicon Quantum automation platform range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As a dio head-end adaptor, the 140NOM21200C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 0…60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…60 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…85 °C. Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOM21200C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOM21200C?
The 140NOM21200C is a dio head-end adaptor in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: DIO head-end adaptor.
What are the key technical ratings of the 140NOM21200C?
Its published highlights include operating temperature 0…60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NOM21200C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NOM21200C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOM21200C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140NOM21200C from the Modicon Quantum series serves as a DIO head-end adapter. It supports two Modbus RS-485 interfaces and a single Modbus RS-232 interface with a maximum transmission rate of 1 Mbps, ensuring robust communication capabilities.
Description
| Note | The 140NOM21200C is a DIO head-end adapter essential for Schneider Electric's Modicon Quantum series. It is designed with versatile communication features, including two Modbus RS-485 interfaces and one Modbus RS-232 interface, capable of achieving a transmission speed of 1 Mbps. With the capacity to handle 30 input and 32 output words, this module facilitates substantial data management within automated systems. The device operates with a power dissipation of 4 watts and complies with UL 508 standards. A bus current of 780 mA is necessary for its operation. This adaptor has a resilient operating range, capable of functioning in ambient temperatures from 0 to 60 °C. It can withstand humidity levels up to 95% without the risk of condensation forming. In terms of environmental resilience, it can operate at altitudes reaching 16,404.2 feet (5000 meters), ensuring adaptability in various installations. The unit features a conformal coating for additional protection. Moreover, it is designed to resist electrostatic discharge, with a rating of 4 kV for contact and 8 kV for air discharge. This makes the 140NOM21200C suitable for demanding industrial applications. |
|---|---|
| Range of product | Modicon Quantum automation platform Product or component type DIO head-end adaptor |
Complementary
| Product compatibility | 140CRA21210 140CRA21220 |
|---|---|
| Number of port | 1 Modbus RS232 twisted pair redundant copper 2 Modbus Plus RS485 twisted pair redundant copper Transmission rate 1 Mbit/s |
| I/O words | 30 I/32 O |
| Checks | RAM RAM address Processor Checksum |
| Power dissipation in W | 4 W |
| Bus current requirement | 780 mA |
Environment
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
|---|---|
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Protective treatment | Conformal coating Humiseal 1A33 |
| Standards | UL 508 |
| Product certifications | DNV |
| C-Tick | GL RINA FM Class 1 Division 2 RMRS CSA GOST |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 508.0 g |
