140NOM21100C
Schneider Electric
Overview

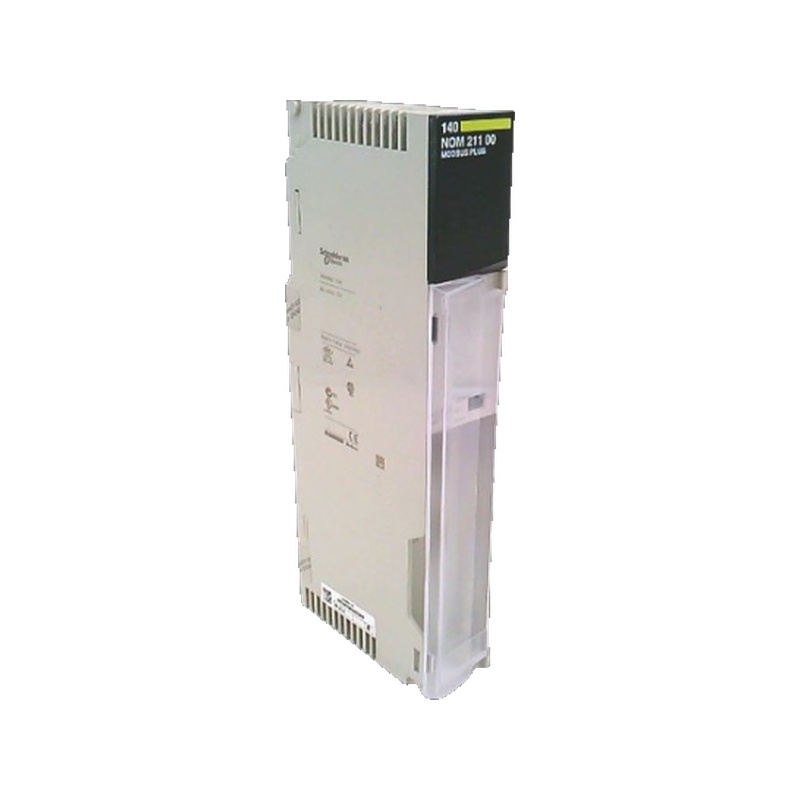

The 140NOM21100C is a DIO head-end adaptor in the Modicon Quantum automation platform range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As a dio head-end adaptor, the 140NOM21100C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOM21100C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOM21100C?
The 140NOM21100C is a dio head-end adaptor in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: DIO head-end adaptor.
What are the key technical ratings of the 140NOM21100C?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NOM21100C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NOM21100C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOM21100C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140NOM21100C is a DIO head-end adaptor belonging to the Schneider Electric Modicon Quantum series. This device enables communication via Modbus protocols over RS-485 and RS-232 interfaces, with a transmission speed of 1 Mbps. It features up to 30 input and 32 output words, supporting diverse applications for data exchange.
Description
| Note | The 140NOM21100C head-end adaptor from Schneider Electric's Modicon Quantum line is intended for integrating input and output functions into systems. This DIO module supports communication through Modbus RS-485 and RS-232, promoting effective and fast data transmission at a rate of 1 Mbps. With a capacity of 30 input and 32 output words, it facilitates efficient data handling within applications. In terms of electrical specifications, it dissipates 4 W of power and requires a bus current of 780 mA for optimal operation. This adapter is built for functionality in various environments, operating effectively within a temperature range of 0 to 60 °C. It can endure high humidity conditions, rated at 95 % without any condensation, ensuring reliable performance over time. The device’s design allows it to function at altitudes of up to 16,404.2 feet (5000 meters), making it suitable for a range of installations. It incorporates robust electrostatic discharge resistance, rated at 4 kV contact and 8 kV in air, protecting against transient voltages. Finally, the conformal coating enhances its durability and suitability for use in challenging industrial conditions. |
|---|---|
| Range of product | Modicon Quantum automation platform Product or component type DIO head-end adaptor |
Complementary
| Product compatibility | 140CRA21110 140CRA21120 |
|---|---|
| Number of port | 1 Modbus Plus RS485 twisted pair single copper 1 Modbus RS232 twisted pair single copper Transmission rate 1 Mbit/s |
| I/O words | 30 I/32 O |
| Checks | RAM address RAM Processor Checksum |
| Power dissipation in W | 4 W |
| Bus current requirement | 780 mA |
| Module format | Standard |
Environment
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
|---|---|
| Resistance to electromagnetic fields | 9.1 V/yd (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Protective treatment | Conformal coating Humiseal 1A33 |
| Standards | UL 508 |
| Product certifications | RMRS FM Class 1 Division 2 CSA GOST |
| C-Tick | N/A |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.890 in (4.800 cm) |
| Package 1 Width | 6.496 in (16.500 cm) |
| Package 1 Length | 12.402 in (31.500 cm) |
| Package 1 Weight | 17.284 oz (490.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 2.240 lb(US) (1.016 kg) |
