140NOL91110
Schneider Electric
Overview

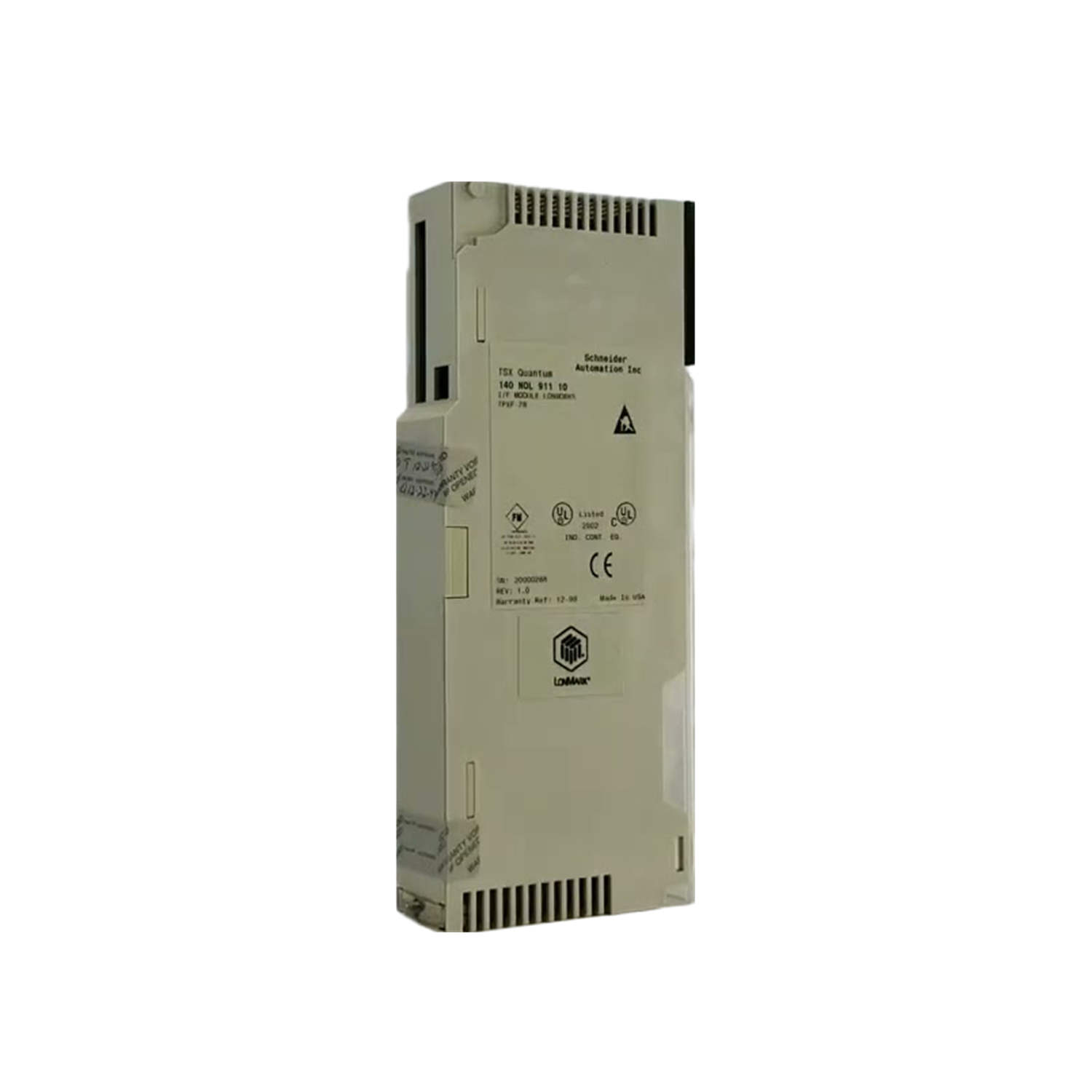

The 140NOL91110 is a Quantum Transceiver in the Modicon Quantum range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As a quantum transceiver, the 140NOL91110 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of -20°C to 60°C, din rail mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-20°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOL91110, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOL91110?
The 140NOL91110 is a quantum transceiver in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Quantum Transceiver.
What are the key technical ratings of the 140NOL91110?
Its published highlights include operating temperature -20°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NOL91110 mounted or installed?
It uses DIN Rail. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the 140NOL91110 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOL91110?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140NOL91110 by Schneider Electric is a transceiver that integrates with the Modicon Quantum series. It supports a Lonworks interface, allowing for effective data communication. Designed for stable operation, this unit functions well within specific temperature and humidity ranges.
Description
| Note | Schneider Electric's 140NOL91110 transceiver is engineered for integration into the Modicon Quantum series, facilitating Lonworks networking. This model offers reliable performance across a temperature spectrum from -20°C to 60°C. For extreme conditions, it can handle storage temperatures as low as -40°C and up to 85°C. The transmission method utilized is TPT/XF-78, achieving a data rate of 78 kbps so that information can be sent promptly and efficiently. The device is installed via a DIN rail mount, promoting easy integration into existing setups. It operates on a 24 V DC power supply and requires a current rating of 150 mA for optimal functionality. The design accommodates various environmental challenges, with a maximum operating humidity of 80% RH, ensuring non-condensing conditions. Additionally, it maintains reliability at altitudes of up to 1000 meters above sea level during both operation and storage. Weighing 0.45 kg, this transceiver is both lightweight and efficient, making it an ideal choice for applications requiring robust data transmission capabilities within specified limits. The focus on operational resilience and adaptability makes the 140NOL91110 a valuable component in various automation systems. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
