140NOE77111
Schneider Electric
Overview

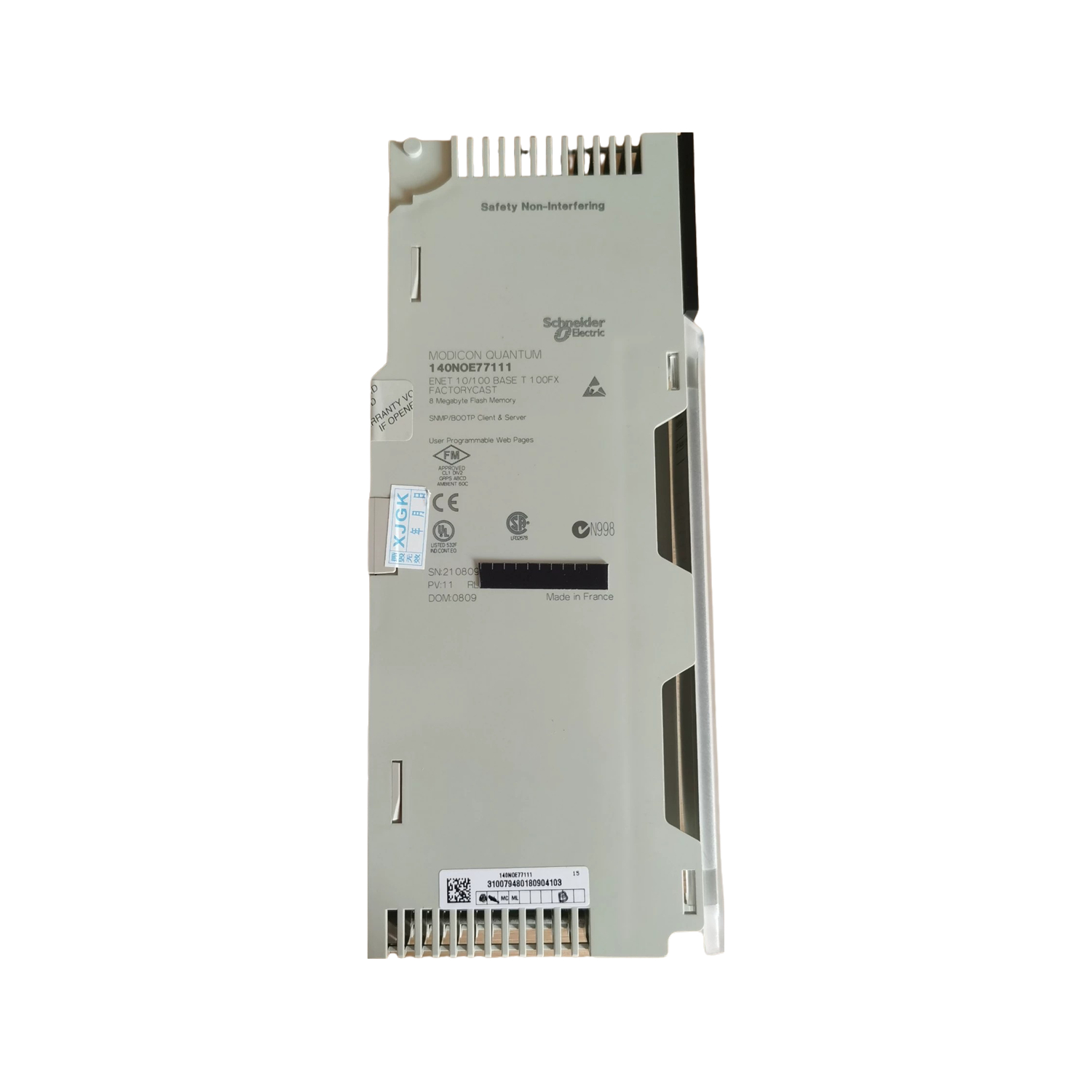

The 140NOE77111 is an Ethernet network TCP/IP module in the Modicon Quantum automation platform range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet network tcp/ip module, the 140NOE77111 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOE77111, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOE77111?
The 140NOE77111 is an ethernet network tcp/ip module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Ethernet network TCP/IP module.
What are the key technical ratings of the 140NOE77111?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NOE77111 mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NOE77111 compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOE77111?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Ethernet network TCP/IP module, Modicon Quantum, transparent ready, 750mA at 5VDC, class C30
Main
| Range of Product | Modicon Quantum automation platform Product or Component Type Ethernet network TCP/IP module Concept Transparent Ready |
|---|---|
| Web server | Class C30 |
| Web services | N/A |
| Rack viewer | FactoryCast configurable Data editor |
| Communication Service | Bandwidth management NTP time synchronization SNMP network management I/O scanning Modbus TCP messaging SMTP e-mail notification FDR server Global Data Communication Port Protocol Ethernet Modbus TCP/IP Physical interface MT/RJ - 100BASE-FX fiber optic RJ45 - 10BASE-T/100BASE-TX twisted pair |
| Transmission Rate | 10/100 Mbit/s |
Complementary
| Redundancy | Yes hot standby redundant architecture |
|---|---|
| Supply | Via the power supply of the rack |
| Marking | CE |
| Local signalling | 1 LED for 10 Mbps or 100 Mbps data rate (10 MB/100 MB) 1 LED for collision detection (Coll) 1 LED for download mode (Kernel) 1 LED for Ethernet module fault (Fault) 1 LED for Ethernet network status (RUN) 1 LED for full-duplex mode (Fduplex) 1 LED for module ready (Ready) 1 LED for network active (Link) 1 LED for rack operational (Active) 1 LED for transmission/reception activity (TxAct/RxAct) |
| Current consumption | 750 mA 5 V DC |
| Module format | Standard |
| Product Weight | 0.761 lb(US) (0.345 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|---|
| Product Certifications | UL 508 cUL |
| Standards | FM Class 1 Division 2 |
| CSA C22.2 No 142 | N/A |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 14763.78 ft (4500 m) |
Ordering and shipping details
| Category | US1PC2118150 |
|---|---|
| Discount Schedule | PC21 GTIN 3595862052894 |
| Returnability | Yes |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.85 in (4.7 cm) |
| Package 1 Width | 6.50 in (16.5 cm) |
| Package 1 Length | 12.40 in (31.5 cm) |
| Package weight(Lbs) | 17.6 oz (499.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
