140NOE77110C
Schneider Electric
Overview

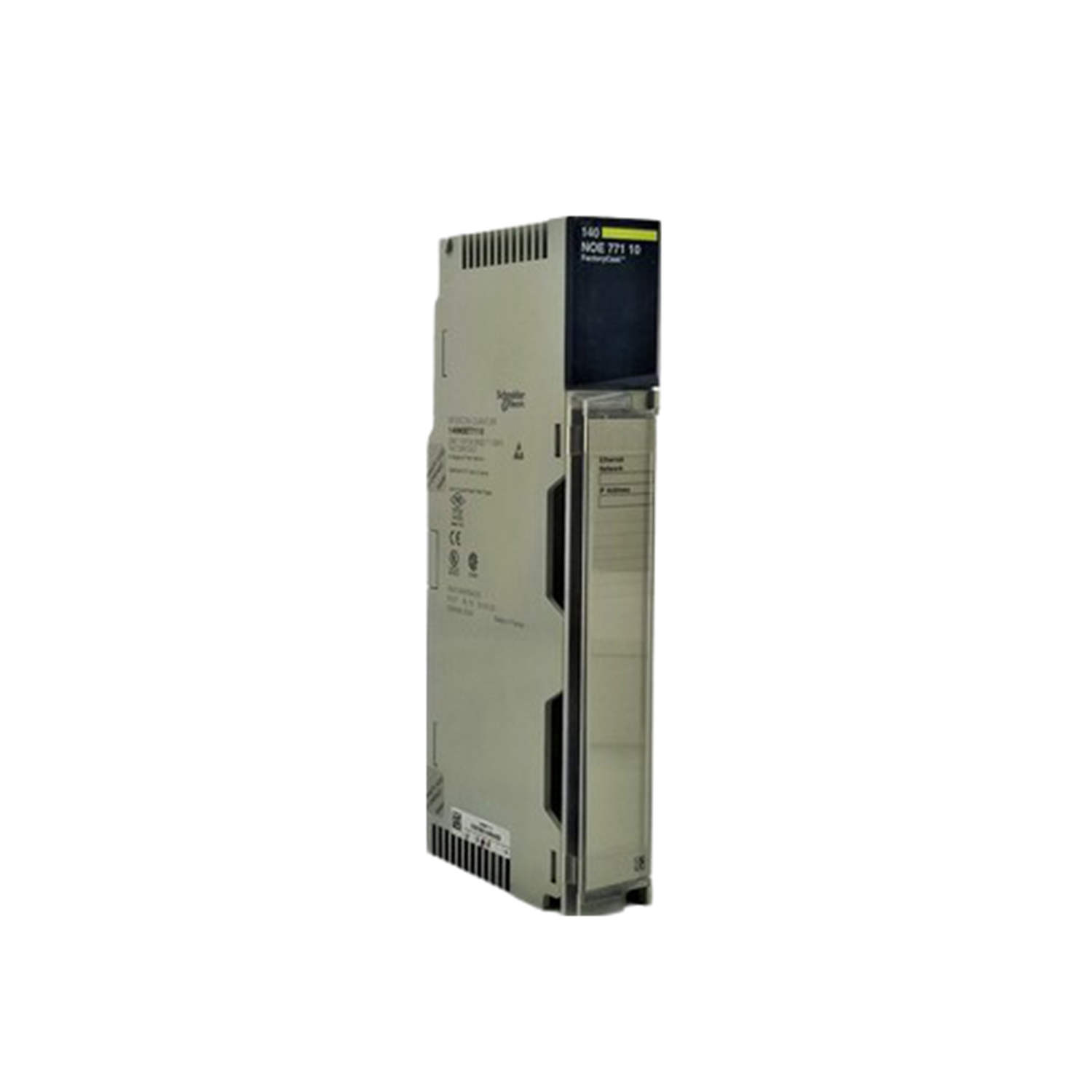

The 140NOE77110C is an Ethernet Module in the Modicon Quantum range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet module, the 140NOE77110C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Avoid condensation — the rated humidity is 95 % without Condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOE77110C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOE77110C?
The 140NOE77110C is an ethernet module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Ethernet Module.
What are the key technical ratings of the 140NOE77110C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140NOE77110C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NOE77110C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOE77110C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140NOE77110C is an Ethernet module from the Modicon Quantum series designed for enhanced communication capabilities. It supports Ethernet Modbus TCP/IP protocols and provides a reliable transmission rate of 10/100 Mbit/s.
Description
| Note | Designed for seamless integration, the 140NOE77110C from Schneider Electric is an Ethernet module utilized within the Modicon Quantum series. This component supports Ethernet Modbus TCP/IP protocols, enabling effective communication in various industrial settings. It offers a transmission rate capable of 10 or 100 Mbit/s, providing flexibility for different network configurations. The web server of this module is classified under Class C20, enhancing accessibility for integrated systems. It operates on the power supply from the rack itself, simplifying installation and connectivity. Current consumption is rated at 750 mA with a 5 V DC supply requirement, ensuring consistent power provision for optimal performance. In terms of environmental specifications, the 140NOE77110C can function effectively in ambient temperatures ranging between 0 and 60 °C. It also maintains operation under relative humidity levels of up to 95% without condensation, making it suitable for a variety of conditions. This module is built in a standard format, and its weight is approximately 0.345 kg. Additionally, compliance with UL 508 and cUL standards demonstrates its reliability and safety features. Its protection class is IP20, ensuring it is safeguarded against solid foreign objects that exceed 12 mm. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
