140NOC78100C
Schneider Electric
Overview

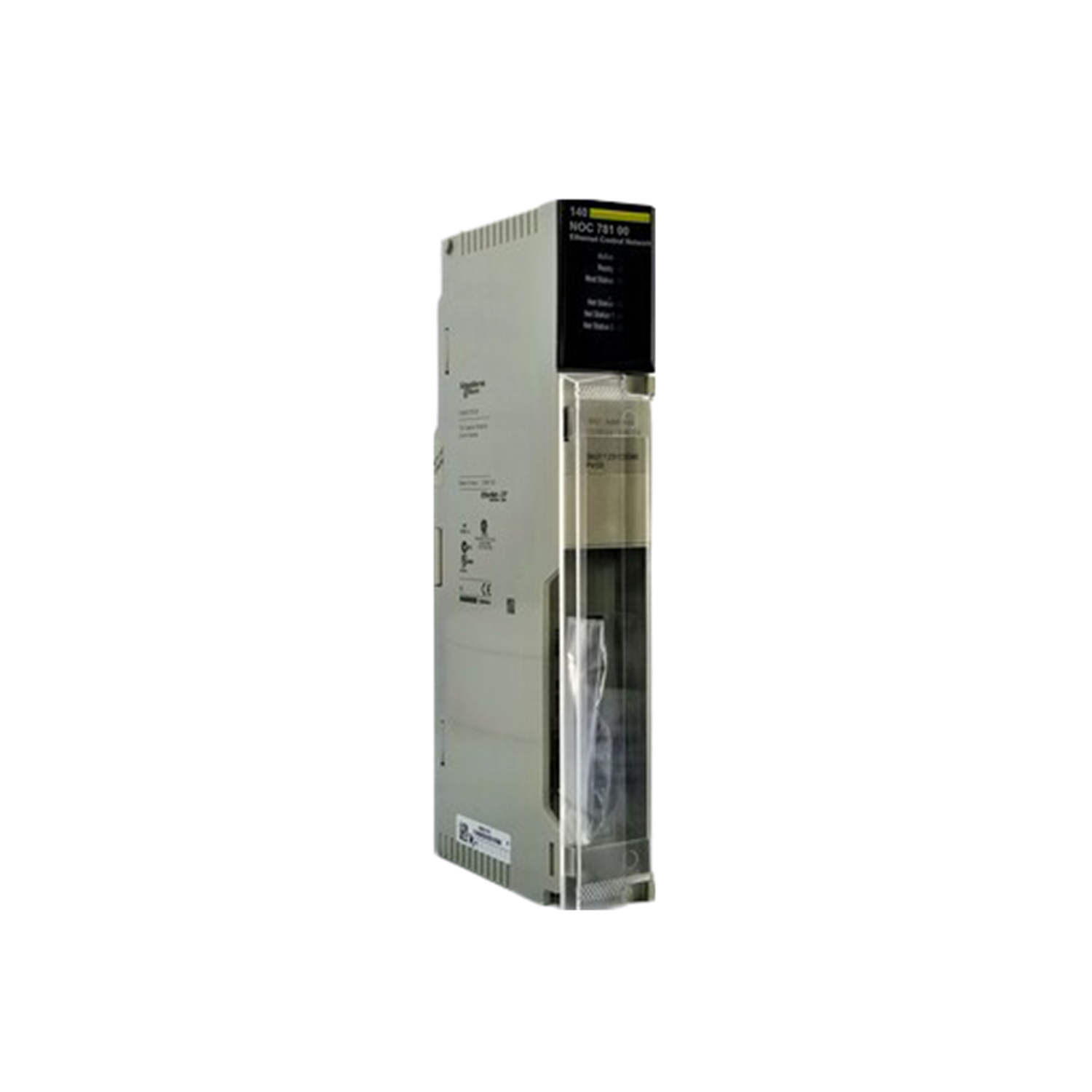

The 140NOC78100C is an Ethernet control module in the Modicon Quantum automation platform range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet control module, the 140NOC78100C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 0°C to 60°C, rack mountable mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -40°C to 85°C. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOC78100C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOC78100C?
The 140NOC78100C is an ethernet control module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Ethernet control module.
What are the key technical ratings of the 140NOC78100C?
Its published highlights include operating temperature 0°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NOC78100C mounted or installed?
It uses Rack Mountable. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the 140NOC78100C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOC78100C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140NOC78100C is an Ethernet network module designed for the Modicon Quantum series. It supports both Ethernet/IP and Modbus TCP communication protocols, enabling flexible network configurations.
Complementary
| Product Compatibility | 140CPU6xxxx Communication Port Protocol |
|---|---|
| EtherNet/IP | Modbus TCP Exchange mode Full duplex |
| Maximum number of connections | 64 |
| Transmission Rate | 10/100 Mbit/s |
| Redundancy | Yes hot standby redundant architecture |
| Topology | Redundant ring Daisy chain loop |
| Web server | Embedded |
| Communication Service | DHCP/BootP server SMTP e-mail notification Embedded router CIP implicit messaging (I/O communication) |
| SNMP agent | Embedded 4-port switch NTP time synchronization CIP Explicit messaging (client messaging) FDR server Quality of Service (QoS) Device Type Manager (DTM) |
| Ethernet service | Rapid Scanning Tree Protocol (RSTP) |
| Transmission support medium | Twisted pair |
| Port Ethernet | RJ45 10BASE-T/100BASE-TX |
| Marking | CE |
| Supply | Via the power supply of the rack |
| Local signalling | 1 LED (green) for communication on the bus (Active) 1 LED (green) for configuration status (Ready) 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green/red) for device network status (Net Status 1) 1 LED (green/red) for extended DIO network status (Net Status 2) |
| Module format | Standard |
| Net Weight | 0.761 lb(US) (0.345 kg) |
Description
| Note | The 140NOC78100C model from Schneider Electric is a specialized Ethernet network module tailored for the Modicon Quantum line. It facilitates communication through Ethernet/IP and Modbus TCP, providing essential networking capabilities. This module functions in full duplex mode, allowing for simultaneous two-way communication, which enhances data exchange efficiency. It supports a maximum of 64 connections and operates at transmission rates of 10 or 100 Mbit/s, ensuring effective data transfer. For enhanced reliability, the module features a hot standby redundant architecture, allowing for a seamless switch-over if a failure occurs. The embedded web server provides easy access for monitoring and configuration. The 140NOC78100C is designed to operate effectively in ambient temperatures from 0°C to 60°C, while it can withstand storage conditions ranging from -40°C to 85°C. This module supports both daisy chain and redundant ring topologies, providing flexible installation options. As a rack-mountable unit with an IP20 protection rating, it is suitable for various industrial environments. The module is coated for added protection against environmental factors and utilizes twisted pair medium for transmission support, enhancing connectivity robustness. |
|---|
