140NOC78000C
Schneider Electric
Overview

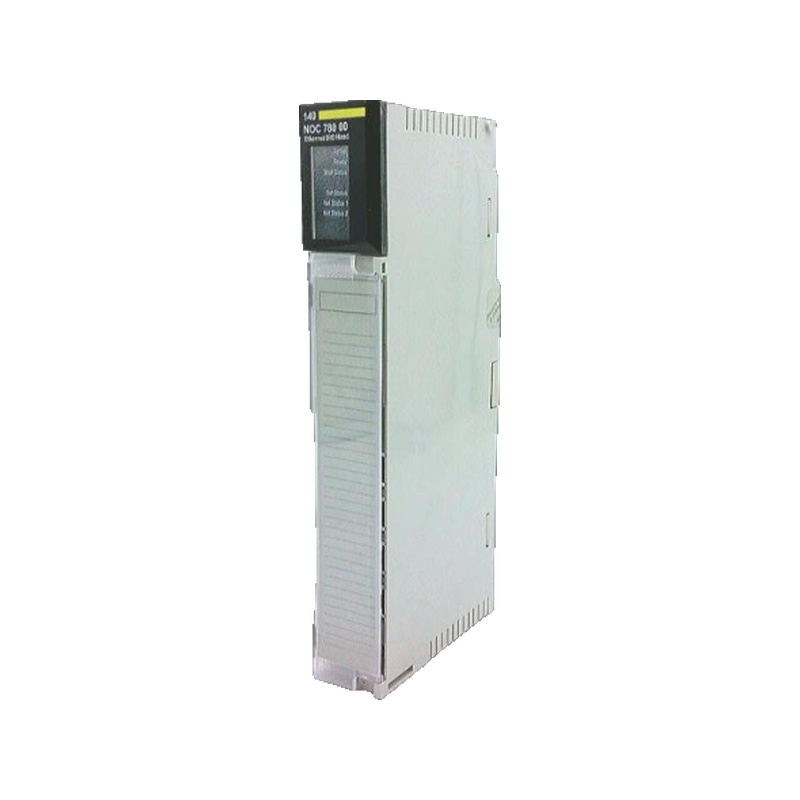

The 140NOC78000C is an Ethernet DIO Network Module in the Modicon Quantum range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet dio network module, the 140NOC78000C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOC78000C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOC78000C?
The 140NOC78000C is an ethernet dio network module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: Ethernet DIO Network Module.
What are the key technical ratings of the 140NOC78000C?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the 140NOC78000C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NOC78000C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOC78000C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Modicon Quantum 140NOC78000C is an Ethernet digital input/output network module. This robust unit supports full-duplex communications while accommodating a maximum of 128 connections. Ideal for various automation tasks, it operates at transmission rates of 10/100 Mbit/s and includes built-in redundancy features for increased reliability.
Description
| Note | The Schneider Electric part number 140NOC78000C, belonging to the Modicon Quantum series, functions as an Ethernet digital input/output (DIO) network module. This component supports seamless full-duplex communication, ensuring two-way data transfers without delays. Its capability to manage up to 128 simultaneous connections provides flexibility for scaling and integrating into existing systems. Operating at a transmission rate of 10/100 Mbit/s, it maintains high-speed data interchange crucial for modern applications. This module is fitted with a redundancy option, enhancing its reliability and operational stability. Users benefit from an embedded web server, which simplifies configuration and monitoring processes remotely. The Ethernet service is supported by the Rapid Scanning Tree Protocol (RSTP), optimizing network performance and reducing potential transmission delays. Engineered for standard installations, this unit utilizes twisted pair cabling and is compatible with an RJ-45 interface for easy connectivity. Weighing 0.345 kg, it has a compact design that integrates easily into most setups. Additionally, its IP20 protection rating signifies a basic level of defense against dust and solid object ingress. This module operates effectively in environments with ambient temperatures ranging from 0 °C to 60 °C, suitable for diverse industrial applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
