140NOC77101C
Schneider Electric
Overview

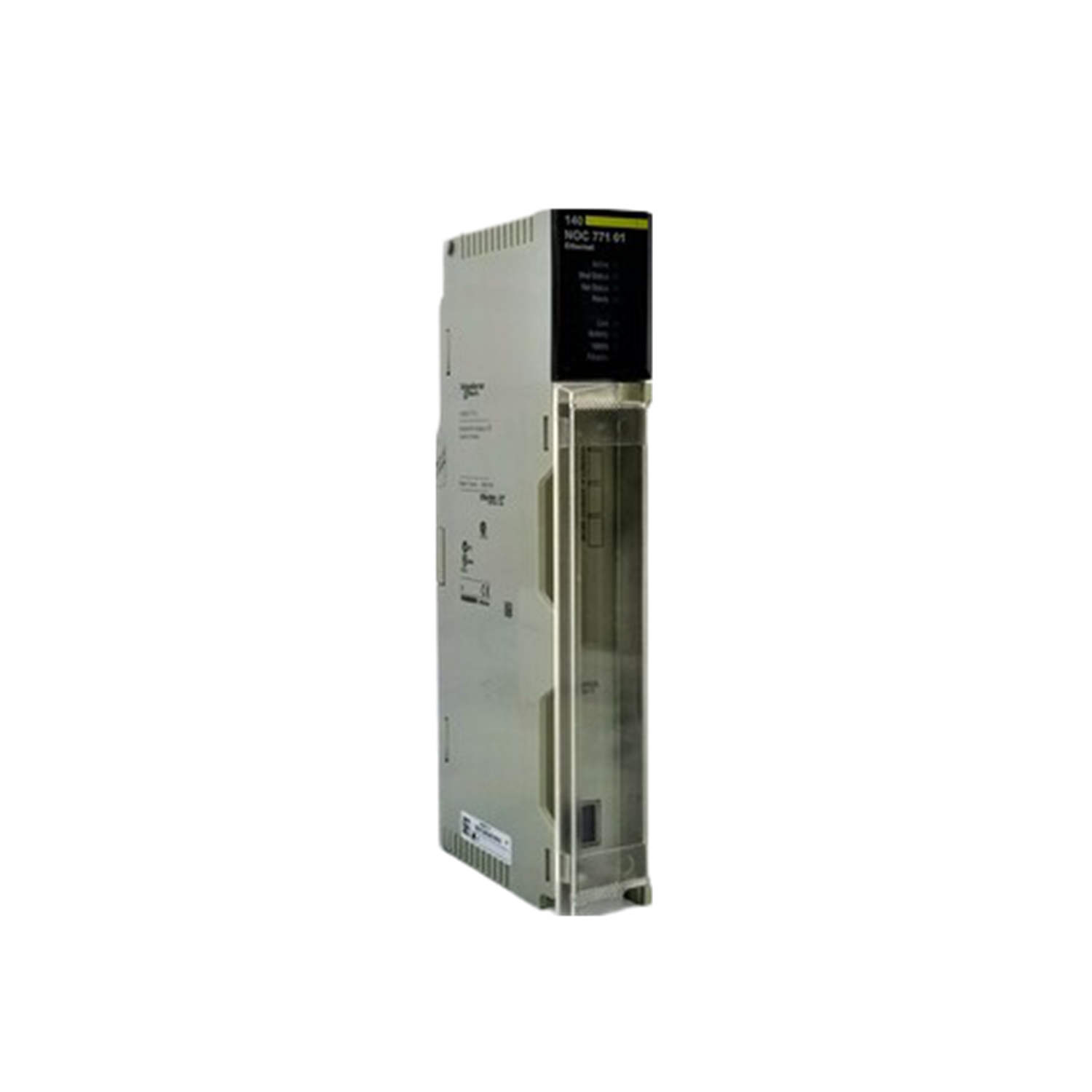

The 140NOC77101C is a TCP/IP Module in the Modicon Quantum range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As a tcp/ip module, the 140NOC77101C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 0 to 40 degrees Celsius. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 40 degrees Celsius); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within 0 to 50 degrees Celsius. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOC77101C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOC77101C?
The 140NOC77101C is a tcp/ip module in the Modicon Quantum range from Schneider Electric. It is described by the manufacturer as: TCP/IP Module.
What are the key technical ratings of the 140NOC77101C?
Its published highlights include operating temperature 0 to 40 degrees Celsius. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NOC77101C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NOC77101C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOC77101C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140NOC77101C is a TCP/IP module from Schneider Electric's Modicon Quantum series, functioning effectively with various machine control applications. This module supports protocols like ModBus and is suitable for applications in material handling, packaging, and textiles.
Description
| Note | The Schneider Electric 140NOC77101C is a TCP/IP module part of the Modicon Quantum series, designed specifically for industrial and machine control applications. This module offers compatibility with the ModBus protocol, making it a versatile choice for various tasks. It supports machine control, material handling, packaging, and textile machinery applications. With an operational temperature range of 0 to 40 degrees Celsius, this module is intended for use in clean indoor environments free from corrosive elements. It can also be stored in conditions with temperatures that reach up to 50 degrees Celsius. Operating effectively at altitudes of up to 1000 meters above sea level, the 140NOC77101C can adapt to various installation situations. Additionally, it permits relative humidity levels of 80% without condensation during both operation and storage, ensuring reliable performance in diverse environments. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
