140NOC77100C
Schneider Electric
Overview

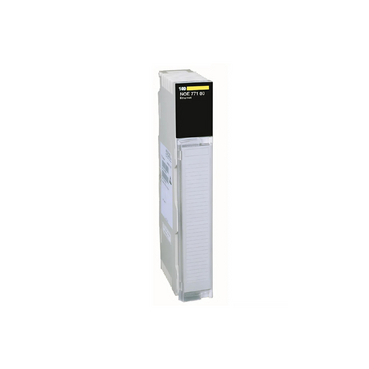

The 140NOC77100C is an Ethernet/IP network module in the Modicon Quantum automation platform range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet/ip network module, the 140NOC77100C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within 0 to 50 degrees Celsius. Avoid condensation — the rated humidity is 10…95 % 140 °F (60 °C) without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOC77100C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOC77100C?
The 140NOC77100C is an ethernet/ip network module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Ethernet/IP network module.
What are the key technical ratings of the 140NOC77100C?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NOC77100C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NOC77100C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOC77100C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140NOC77100C from Schneider Electric is a TCP/IP module designed for various applications, including machine control, material handling, packaging, and textile machinery. It operates effectively within a temperature range of 0 to 40 degrees Celsius under specified humidity conditions.
Description
| Note | The Schneider Electric Modicon Quantum 140NOC77100C is a TCP/IP module built to facilitate various applications within industrial environments. This module is particularly useful for machine control, material handling, packaging, and textile machinery. Operating temperatures for this unit range from 0 to 40 degrees Celsius, allowing it to function efficiently in standard conditions. It supports a maximum humidity of 80% RH, non-condensing, making it versatile for various indoor applications. When it comes to storage, the 140NOC77100C can handle temperatures from 0 to 50 degrees Celsius. It also manages humidity levels up to 80% RH during storage. Both operating and storage conditions allow for altitudes of up to 1000 meters above sea level, thus accommodating installations in high-altitude areas. The module is designed with a requirement for a clean indoor environment, free of corrosive chemicals, ensuring its longevity and reliability over time. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Ethernet/IP network module |
Complementary
| Product Compatibility | All Unity CPU Communication Port Protocol |
|---|---|
| EtherNet/IP | N/A |
| Maximum number of connections | 128 |
| Transmission Rate | 10/100 Mbit/s |
| Redundancy | No standalone |
| Communication Service | CIP Explicit messaging (client messaging) |
| SNMP agent | DHCP/BootP server CIP implicit messaging (I/O communication) |
| Transmission support medium | Twisted pair |
| Port Ethernet | RJ45 10BASE-T/100BASE-TX |
| Marking | CE |
| Supply | Via the power supply of the rack |
| Local signalling | 1 LED (green) for communication on the bus (Active) 1 LED (green) for configuration status (Ready) 1 LED (green) for connection speed (100MB) 1 LED (green) for Ethernet network status (link) 1 LED (green/red) for full duplex/collision detection (Fduplex/Col) 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green) for reception activity (RxActive) 1 LED (green) for transmission activity (TxActive) |
| Current consumption | 500 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.761 lb(US) (0.345 kg) |
Environment
| Standards | UL 508 |
|---|---|
| CSA C22.2 No 142 | FM Class 1 Division 2 |
| Product Certifications | N/A |
| C-tick | cUL ODVA |
| Merchant Navy | N/A |
| IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 10…95 % 140 °F (60 °C) without condensation |
Ordering and shipping details
| Category | 18150-QUANTUM CONTROLLERS,HSBY,COMM. |
|---|---|
| Discount Schedule | PC21 GTIN 3595863988703 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.0 in (5.0 cm) |
| Package 1 Width | 6.7 in (17.0 cm) |
| Package 1 Length | 12.6 in (32.0 cm) |
| Package weight(Lbs) | 17.9 oz (507.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
