140NOA62200C
Schneider Electric
Overview

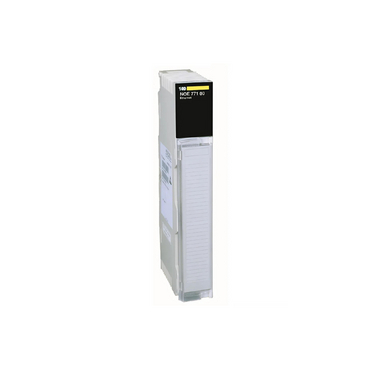

The 140NOA62200C is an Interbus master module in the Modicon Quantum automation platform range from Schneider Electric. It extends Modicon Quantum connectivity through its onboard communication interface.
Application & Technical Notes
As an interbus master module, the 140NOA62200C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include an operating temperature range of 0…60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…60 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…85 °C. Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140NOA62200C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Modicon Quantum network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140NOA62200C?
The 140NOA62200C is an interbus master module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Interbus master module.
What are the key technical ratings of the 140NOA62200C?
Its published highlights include operating temperature 0…60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140NOA62200C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140NOA62200C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140NOA62200C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140NOA62200C is an Interbus master module from the Schneider Electric Modicon Quantum series. Engineered for use in challenging environments, this module supports a robust performance using twisted pair cabling and complies with various industry standards including UL and CSA.
Description
| Note | The 140NOA62200C module, part of Schneider Electric’s Modicon Quantum line, is designed as an Interbus master module primarily utilized in demanding operational environments. This device follows a standard format and is accessible via the master method, ensuring reliable communication within a network of industrial automation. It operates effectively using twisted pair cabling, capable of reaching a maximum cable length of up to 20 meters. With a bus current requirement of 800 mA, the module ensures adequate power distribution throughout its connections. The overall power dissipation is maintained at 4 watts, supporting efficient operation. Weighing approximately 0.9 kg, this device is built for local rack type installations. The ambient temperature range for this module is set between 0 to 60 °C, which allows for varied application environments. Additionally, it is marked with CE certification and complies with recognized standards such as UL and CSA, reinforcing its suitability for use in industrial contexts. |
|---|---|
| Range of product | Modicon Quantum automation platform Product or component type Interbus master module |
| Software designation | Concept ProWORX 32 Software version V 2.5 SR2 Module type Interbus generation 4 Format Standard |
Complementary
| Product compatibility | 140CPU53414B 140CPU43412A 140CPU11303 Product specific application For severe environments Module profile PCP V2.0 |
|---|---|
| Method of access | Master Communication port protocol Interbus RS485 isolated 500 kbit/s conforming to DIN 66020 Serial link |
| Type of cable | Twisted pair Maximum cable distance between devices 20 m |
| Memory capacity | 128 kB + 256 kB firmware EPROM 2 kB dual-port RAM RAM 256 kB + 32 kB for data RAM 64 kB Interbus command sequence EEPROM 64 kB multi-port RAM RAM |
| Bus current requirement | 800 mA |
| Product compatibility | 6 x 140CPU11303 Interbus local rack 2 x 140CPU43412A or 140CPU53414B Interbus local rack Rack type Local |
| Power dissipation in W | 4 W |
| Local signalling | 1 LED (green) for communication with the Quantum CPU active (ACTIVE) 1 LED (green) for firmware and module run (RUN) 1 LED (green) for Interbus is functioning normally and carrying data (IS-B RUN) 1 LED (red) for fault module (F) 1 LED (red) for initialization fault with the DEA 202 1 LED (red) for Interbus master is not operational 1 LED (red) for Interbus module has reported a fault 1 LED (red) for memory fault 1 LED (red) for peripheral bus fault 1 LED (red) for processor fault (master) 1 LED (red) for remote bus fault 1 LED (yellow) for one or more bus segments are shut down |
| Electrical connection | 1 connector SUB-D 9 1 connector SUB-D 9 Interbus link |
| Marking | CE |
| Net weight | 0.9 kg |
Environment
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
|---|---|
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Product certifications | CSA UL |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
