140DDI67300C
Schneider Electric
Overview

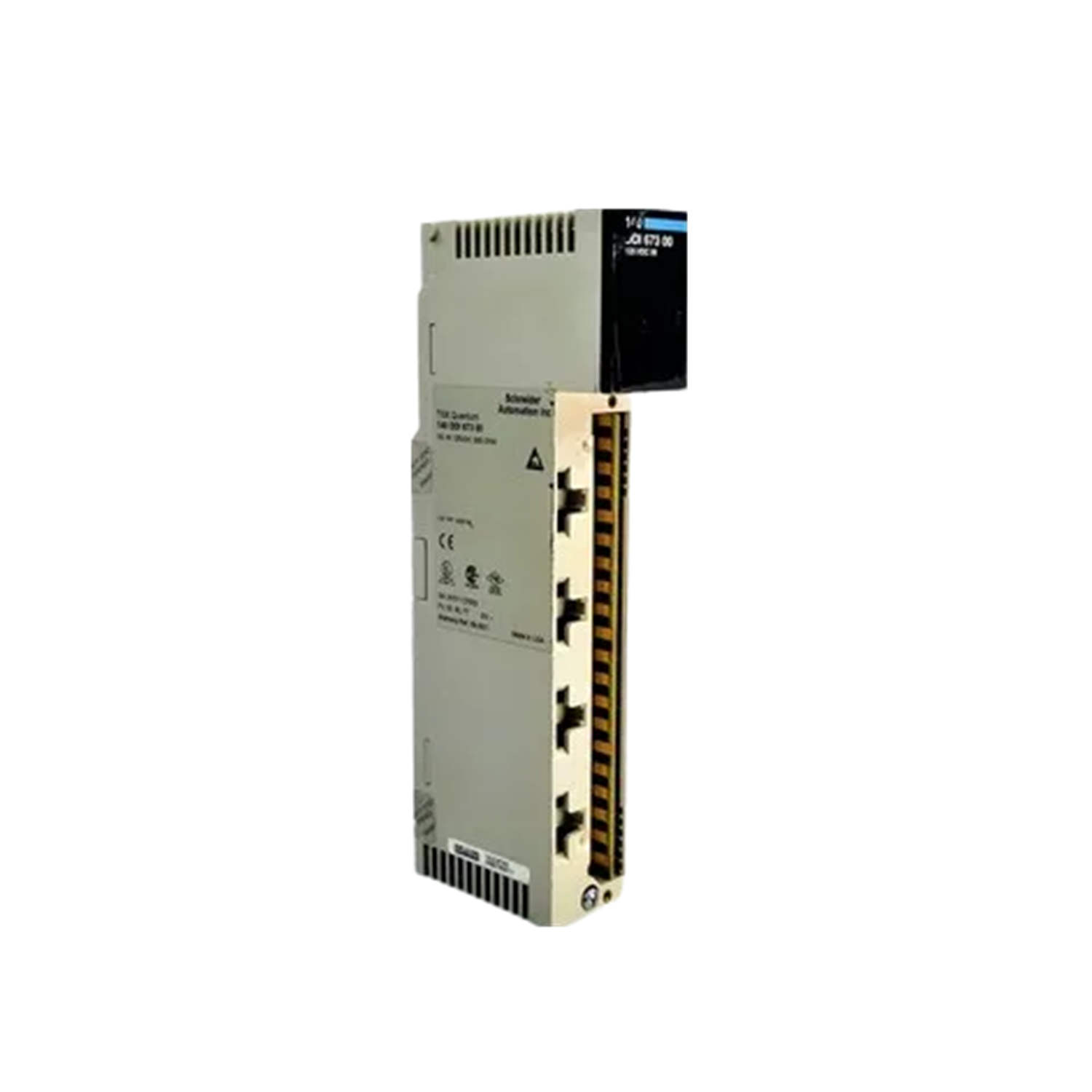

The 140DDI67300C is a Dc discrete input modules in the Modicon Quantum automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Quantum ecosystem.
Application & Technical Notes
As a dc discrete input modules, the 140DDI67300C is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Quantum equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include a 88 to 150 V rating, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140DDI67300C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the 140DDI67300C?
The 140DDI67300C is a dc discrete input modules in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Dc discrete input modules.
What are the key technical ratings of the 140DDI67300C?
Its published highlights include 88 to 150 V, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140DDI67300C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140DDI67300C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140DDI67300C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140DDI67300C is a discrete input module from Schneider Electric's Modicon Quantum series. It features 24 input channels and operates on a voltage range of 88 to 150 V, with a nominal rating of 125 V DC.
Description
| Note | Schneider Electric presents the 140DDI67300C, a discrete input module that’s part of the Modicon Quantum series. This unit is equipped with a total of 24 input channels, providing substantial connectivity for various applications. It can accept an input voltage that ranges from 88 to 150 volts. The nominal input is rated at 125 volts DC, ensuring reliable operation in typical settings. For addressing, the module needs two input words. It excels in responsiveness, achieving a response time of just 0.7 milliseconds, facilitating quick and efficient input processing. The bus current requirement for this module is 200 milliamperes, allowing for integration within standard systems. Integration is further simplified with positive (sink) logic inputs, making it compatible with various control scenarios. The module weighs 0.3 kilograms, which aids in easy installation and management within control cabinets. Operable in ambient temperatures between 0 and 60 degrees Celsius, it aligns well with industrial standards. Additionally, it carries necessary certifications with CE marking as well as compliance with UL 508 and CSA standards. To enhance durability, this discrete input module features a conformal coating, providing protection against environmental factors. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Dc discrete input modules Discrete input number 24 |
Complementary
| Group of channels | 3 |
|---|---|
| Logic input | Positive (sink) |
| Input voltage limits | 88...150 V |
| Input voltage | 125 V 2.5 mA DC Absolute maximum voltage 156.25 V including ripple |
| Addressing requirement | 2 input words |
| Response Time | 0.7 ms from state 0 to state 1 0.7 ms from state 1 to state 0 |
| Isolation between group and bus | 2500 Vrms DC for 1 minute |
| Isolation between group | 700 Vrms DC for 1 minute |
| Power dissipation | 1 W + (0.62 x number of points on) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 24 LEDs (green) for input status |
| Bus current requirement | 200 mA |
| Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Standards | N/A |
| CSA C22.2 No 142 | UL 508 |
| Product Certifications | FM Class 1 Division 2 |
| C-tick | N/A |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | 18155-QUANTUM I/O & POWER SUPPLIES |
|---|---|
| Discount Schedule | PC21 GTIN 3595861137462 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.4 in (16.3 cm) |
| Package 1 Width | 1.8 in (4.5 cm) |
| Package 1 Length | 12.3 in (31.2 cm) |
| Package weight(Lbs) | 16.9 oz (480 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
