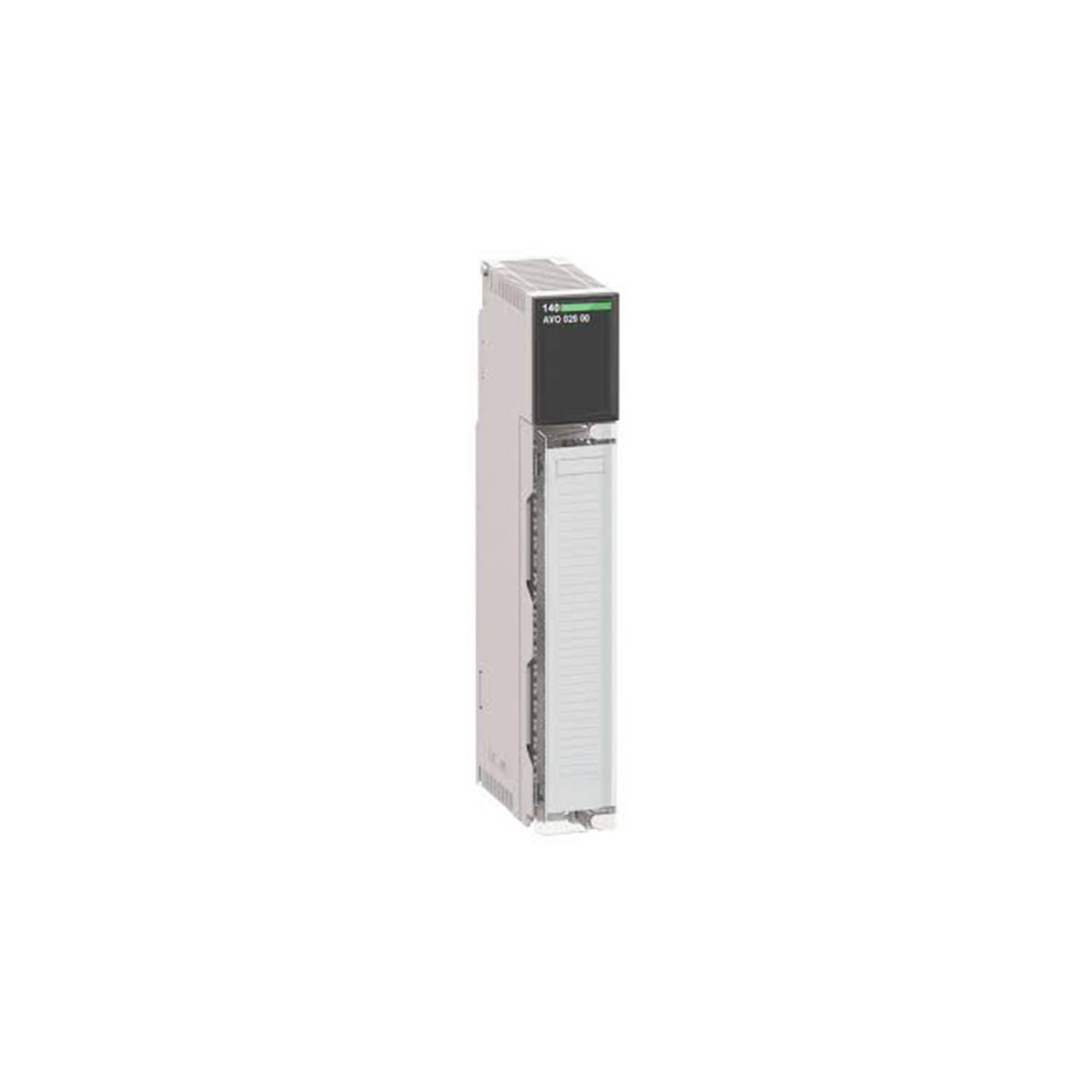

140AVO02000C
Schneider Electric
Overview
The Schneider Electric 140AVO02000C is the conformal-coated variant of the four-channel analogue output module for the Modicon Quantum platform. It drives field devices with analogue signals and, with its protective coating, is better suited than the standard module to humid, washdown or corrosive environments.
The module provides four 12-bit outputs with a 3 ms update time and supports −10 to 10 mA current outputs, isolating channels at 500 V for one minute. It draws 700 mA from the backplane, dissipates up to 4.5 W and weighs about 0.3 kg. It carries CE marking and operates across 0–60 °C ambient with 5–95 % non-condensing humidity tolerance.
Application & Technical Notes
Electrically the 140AVO02000C matches the 140AVO02000; the C suffix adds conformal coating for harsher duty. Four 12-bit outputs with a 3 ms update time serve control loops where fast, stable analogue command is needed, and the 500 V channel isolation protects the rack from field-side transients. The 700 mA backplane draw and 4.5 W dissipation should be included in rack planning.
Integration follows standard analogue-output practice: confirm load impedance and cable length, use shielded and grounded wiring separated from power circuits, and map open-loop or out-of-range diagnostics in the controller. The coating extends service life where moisture, chemical vapour or dust are present.
Maintenance & Diagnostics
The 140AVO02000C is low-maintenance. During commissioning, calibrate each output against a reference or loop calibrator to confirm range and accuracy before service. Keep the rack within 0–60 °C and 5–95 % non-condensing humidity; the coating helps, but condensation should still be avoided.
De-energise the rack before insertion or removal. Because the coating can hide damage, inspect the module visually during shutdowns for cracked housing or overheating. Store spares between −40 and 85 °C in original packaging and recalibrate critical loops at planned intervals.
Sourcing & Procurement
The 140AVO02000C is the conformal-coated version of the 140AVO02000; choose it when humidity, washdown or contaminants are a concern. Genuine Schneider Electric modules are recommended for new builds and safety-related loops because they retain the original CE certification and warranty.
Compatible alternatives may cost less, but verify channel count, output ranges, isolation and approvals before substitution. For long-lead parts, refurbished genuine units from a reputable supplier are generally safer than clones. Buy from authorised distributors where possible and retain serial traceability.
Frequently Asked Questions
What is the difference between 140AVO02000 and 140AVO02000C?
The 140AVO02000C adds conformal coating for humid or contaminated environments; output characteristics are otherwise equivalent.
What outputs does it provide?
Four 12-bit analogue outputs supporting −10 to 10 mA current signals, with a 3 ms update time.
What isolation is provided?
500 V channel isolation for one minute between channels.
What backplane current does it draw?
Approximately 700 mA with a maximum power dissipation of about 4.5 W.
What certifications does it hold?
CE marking; confirm any additional hazardous-location approvals required for your application.
Specifications
The 140AVO02000C is an analog output module from Schneider Electric's Modicon Quantum series, featuring four output channels with a 12-bit resolution. It supports current outputs ranging from -10 to 10 mA and ensures precise control with a linearity of ±1 LSB.
Description
| Note | Schneider Electric's 140AVO02000C is engineered as an analog output module within the Modicon Quantum series. It comprises four distinct channels, facilitating effective signal processing in various automation applications. Each channel can provide current outputs in the range of -10 to 10 mA, ensuring versatility in controlling different devices. The module achieves a resolution of 12 bits, which allows for fine granularity in analog signal representation. For addressing purposes, it requires four output words, which can be easily integrated into the system's architecture. This unit maintains a source resistance of 0.1 Ohm, contributing to the precision of the output. Maximum cable lengths can extend to 400 m, making it suitable for applications spread over larger distances. Additionally, it offers channel isolation of 500 V for a duration of one minute, ensuring protection against voltage surges and maintaining integrity across the outputs. With a reported linearity of 1 LSB (+/-), this module guarantees consistent performance. The operational requirements include a bus current of 700 mA, and a maximum power dissipation of 4.5 W, which emphasizes its efficiency. Weighing in at 0.3 kg, it's manageable for mounting in various configurations. The update time for the module is recorded at 3 ms, promoting rapid response for dynamic applications. The unit also comes with a fuse rating of 0.063 mA, enhancing its precautionary measures for electrical safety. Compliance with CE marking further establishes its adherence to European safety standards. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
