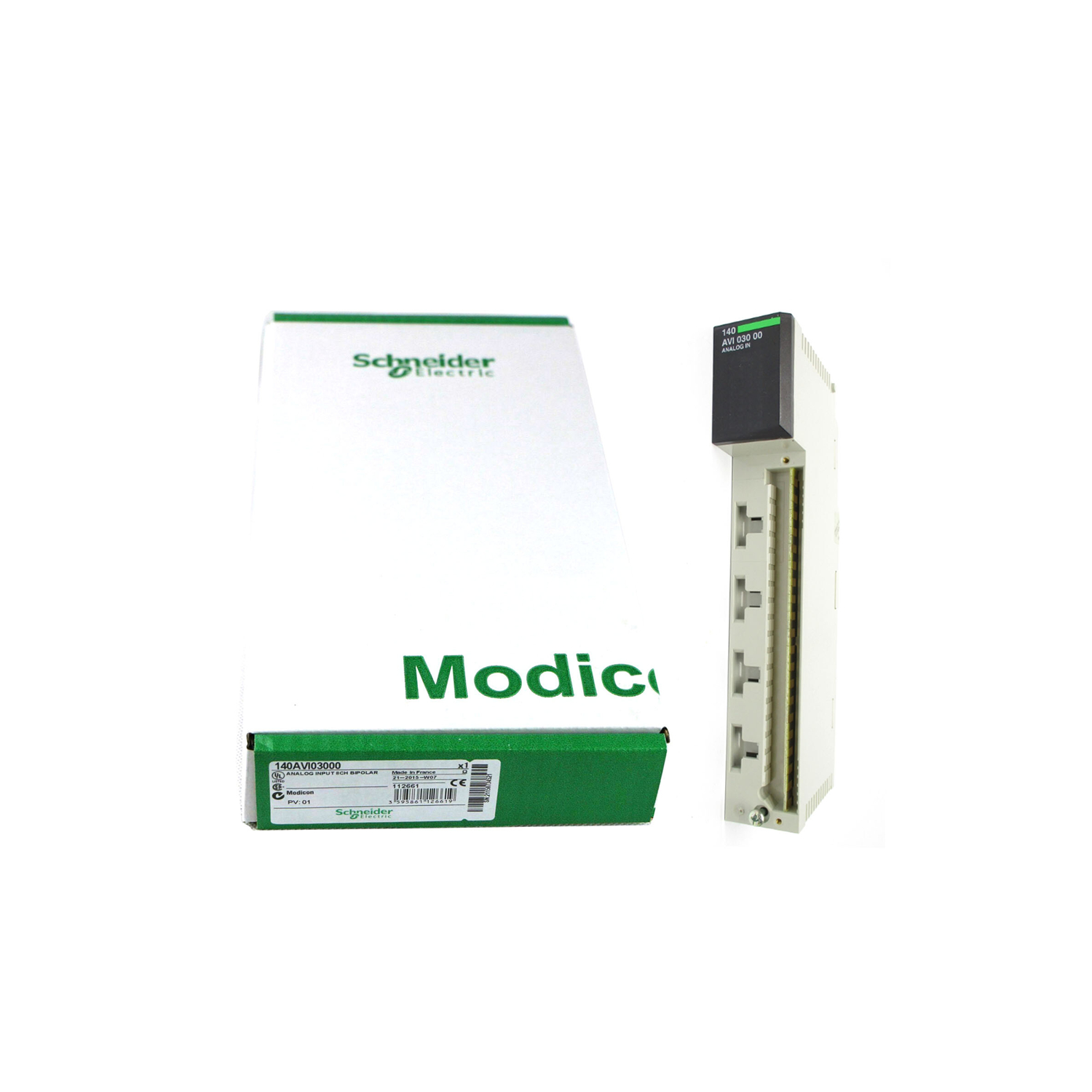

140AVI03000
Schneider Electric
Overview
The Schneider Electric 140AVI03000 is an eight-channel analogue voltage input module for the Modicon Quantum platform. Using differential inputs, it is optimised to acquire voltage signals from transmitters and instruments while rejecting common-mode noise on long field runs.
The module draws 280 mA from the backplane, fits a single Quantum slot and weighs about 0.3 kg. It operates across 0–60 °C ambient with 5–95 % non-condensing humidity tolerance, and carries CE, cUL and FM Class 1 Division 2 approvals. Channel status is presented through LEDs, following the established Quantum I/O design.
Application & Technical Notes
The 140AVI03000 is the voltage-oriented member of the eight-channel Quantum analogue input family, suited to applications where the field instruments present voltage rather than current signals. Differential inputs provide good common-mode rejection, and the 280 mA backplane draw keeps it easy to accommodate in most rack power budgets.
Integration should follow standard analogue practice: confirm the voltage ranges, budget addressing words, and use shielded, grounded wiring separated from power circuits. Map module diagnostics in the controller so channel faults are detected promptly, and ensure absolute maximum inputs are not exceeded on exposed wiring, with external over-range protection where needed.
Maintenance & Diagnostics
The 140AVI03000 is low-maintenance. During commissioning, verify each of the eight channels and confirm the voltage signal is within its expected range before the loop is trusted. Keep the rack within 0–60 °C and 5–95 % non-condensing humidity, and ensure adjacent slots and ventilation are unobstructed because the module is convection-cooled.
De-energise the rack before insertion or removal to protect the backplane. Store spares between −40 and 85 °C in original packaging, recalibrate quality-critical channels against a known source at planned intervals, and keep a spare on hand for critical systems given the eight-channel concentration.
Sourcing & Procurement
The 140AVI03000 is an eight-channel Quantum analogue voltage input module; confirm the required voltage ranges before ordering. Genuine Schneider Electric modules are recommended for new builds and safety-related loops because they retain the original CE, cUL and FM certifications and warranty.
Compatible alternatives may cost less, but verify channel count, isolation, accuracy and approvals before substitution. For long-lead or discontinued parts, refurbished genuine units from a reputable supplier are generally safer than clones. Buy from authorised distributors where possible and retain serial traceability.
Frequently Asked Questions
What is the 140AVI03000?
An eight-channel analogue voltage input module for the Modicon Quantum platform with differential inputs.
How many channels and what input type?
Eight differential analogue voltage input channels for acquiring field voltage signals.
What backplane current does it draw?
Approximately 280 mA from the Quantum backplane.
What certifications does it hold?
CE, cUL and FM Class 1 Division 2, appropriate for designated hazardous-location use within rated conditions.
What should I verify at commissioning?
Confirm each voltage channel's range via the status LEDs and use shielded, grounded wiring separated from power circuits.
Specifications
Schneider Electric 140AVI03000
Main
| Range of Product | Modicon Quantum automation platform Product or Component Type Analogue input module Type of filter Single pole low pass - 3 dB at 847 Hz +/- 20 % |
|---|
Complementary
| Analogue input number | 8 |
|---|---|
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Bipolar current 20 mA Bipolar voltage +/- 10 V Bipolar voltage +/- 5 V Unipolar current 0...20 mA Unipolar voltage 0...10 V Unipolar voltage 0...5 V |
| Analogue input resolution | 16 bits +/- 10 V 16 bits +/- 5 V 16 bits 0...10 V 16 bits 0...20 mA 16 bits 0...5 V 16 bits 20 mA Linear measuring range (input range) x 1.024 mA (input range) x 1.024 V |
| Absolute maximum input | 50 V DC 25 mA |
| Input impedance | > 20 Ohm voltage 250 MOhm +/- 0.03 % |
| Absolute accuracy error | +/- 0.03 % +/- 0.05 % of full scale maximum |
| Linearity error | +/- 0.008 % |
| Accuracy drift according to temperature | +/- 0.0015 % of full scale/°C <= 0.004 % of full scale /°C |
| Common mode rejection | > - 80 dB 60 Hz |
| Isolation between channels and bus | 500 Vrms AC 60 s 750 V DC |
| Isolation between channels | 135 Vrms AC 200 V DC |
| Update time | 10 ms |
| Fault type | Broken wire 4...20 mA Overtacking scale 1...5 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault |
| Bus current requirement | 280 mA |
| Power dissipation in W | 2.2 W |
| Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) |
Environment
| Standards | UL 508 |
|---|---|
| CSA C22.2 No 142 | N/A |
| Product Certifications | FM Class 1 Division 2 cUL |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 GTIN 3595861126619 |
| Returnability | Yes |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.97 in (5.000 cm) |
| Package 1 Width | 6.50 in (16.500 cm) |
| Package 1 Length | 12.40 in (31.500 cm) |
| Package weight(Lbs) | 16.226 oz (460.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 8.144 lb(US) (3.694 kg) |
