140ATI03000C
Schneider Electric
Overview

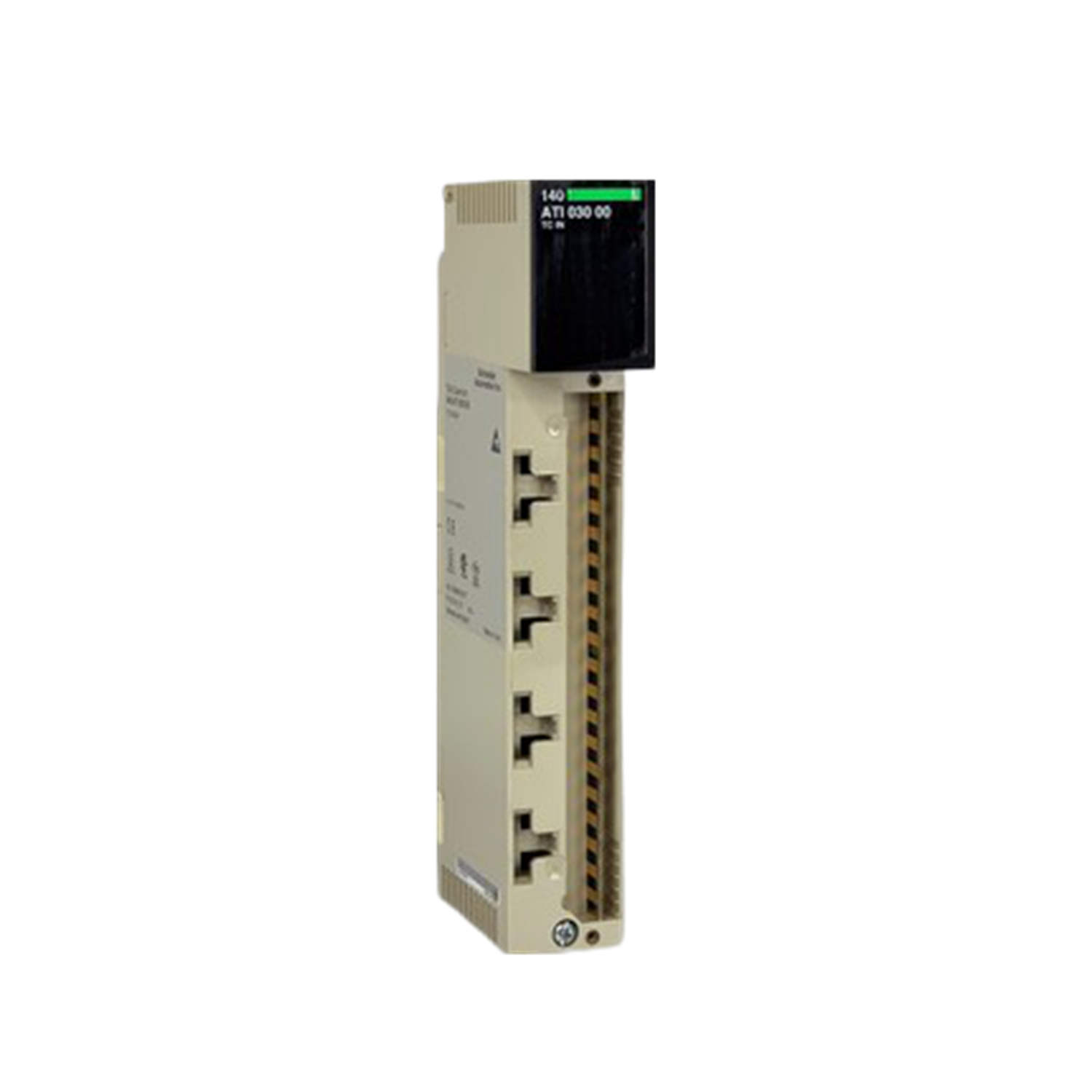

The 140ATI03000C is an Analogue input module in the Modicon Quantum automation platform range from Schneider Electric. It provides 8 channels and is built for signal interfacing within the Modicon Quantum systems.
Application & Technical Notes
As an analogue input module, the 140ATI03000C is intended for deployment in panel-based control cabinets and machine enclosures where the Modicon Quantum equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 8 channels, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140ATI03000C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Check live stock, lead time and request a quote for 140ATI03000C (opens in a new tab)
Frequently Asked Questions
What is the 140ATI03000C?
The 140ATI03000C is an analogue input module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Analogue input module.
What are the key technical ratings of the 140ATI03000C?
Its published highlights include 8 channels, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140ATI03000C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140ATI03000C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140ATI03000C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric 140ATI03000C is an I/O expansion module designed for use with Modicon Quantum systems. This module accommodates 8 analog input points and supports thermocouple input with a high resolution of 16 bits.
Description
| Note | The 140ATI03000C by Schneider Electric functions as an I/O expansion module within the Modicon Quantum series. This device integrates eight analog input channels specifically designed for thermocouple measurements. With a resolution of 16 bits, the module ensures that signal precision is maintained for accurate temperature readings. Additionally, the analog inputs utilize a notch filter set at 3 dB for 50/60 Hz and a single pole low pass filter at 20 Hz, which helps mitigate interference and maintain the integrity of analog signals. The module operates with a bus current requirement of 280 mA and exhibits a power dissipation range of 1.5 watts. The update time is set at 1000 ms, ensuring timely data transmission for responsive application performance. Notably, this expansion module does not provide output points, focusing solely on analog input functionality, making it a specialized component for specific needs in control systems. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Analogue input module Type of filter Notch filter - 3 dB at 50/60 Hz Single pole low pass - 3 dB at 20 Hz |
Complementary
| Analogue input number | 8 |
|---|---|
| Addressing requirement | 10 input words |
| Analogue input type | Thermocouple - 210...760 °C thermocouple J Thermocouple - 270...1000 °C thermocouple E Thermocouple - 270...1370 °C thermocouple K Thermocouple - 270...400 °C thermocouple T Thermocouple - 50...1665 °C thermocouple R Thermocouple - 50...1665 °C thermocouple S |
| Analogue input resolution | 16 bits |
| Absolute accuracy error | +/- 2 °C plus + 0.1 % of reading thermocouple E +/- 2 °C plus + 0.1 % of reading thermocouple J +/- 2 °C plus + 0.1 % of reading thermocouple K +/- 2 °C plus + 0.1 % of reading thermocouple T +/- 4 °C plus + 0.1 % of reading thermocouple R +/- 4 °C plus + 0.1 % of reading thermocouple S |
| Linearity error | 1 °C, 0.1 °C, 1 F, 0.1 F - 210...760 °C 1 °C, 0.1 °C, 1 F, 0.1 F - 270...1000 °C 1 °C, 0.1 °C, 1 F, 0.1 F - 270...1370 °C 1 °C, 0.1 °C, 1 F, 0.1 F - 270...400 °C 1 °C, 0.1 °C, 1 F, 0.1 F - 50...1665 °C |
| Accuracy drift according to temperature | 0.15 µV/°C + 0.0015 % of reading/°C max low level voltage |
| Common mode rejection | > - 120 dB 50/60 Hz |
| Isolation between channels and bus | 1780 V AC 60 s 2500 V DC 60 s |
| Isolation between channels | 300 V DC 220 V AC |
| Update time | 1000 ms |
| Fault type | Broken wire Overtacking scale |
| Marking | CE Cold junction compensation Internal 32…140 °F (0…60 °C) |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault |
| Bus current requirement | 280 mA |
| Power dissipation in W | 1.5 W |
| Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Standards | UL 508 |
| CSA C22.2 No 142 | N/A |
| Product Certifications | cUL FM Class 1 Division 2 |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 GTIN 3595861136144 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.8 in (4.5 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 12.6 in (32.0 cm) |
| Package weight(Lbs) | 16.2 oz (459.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
