140ARI03010C
Schneider Electric
Overview

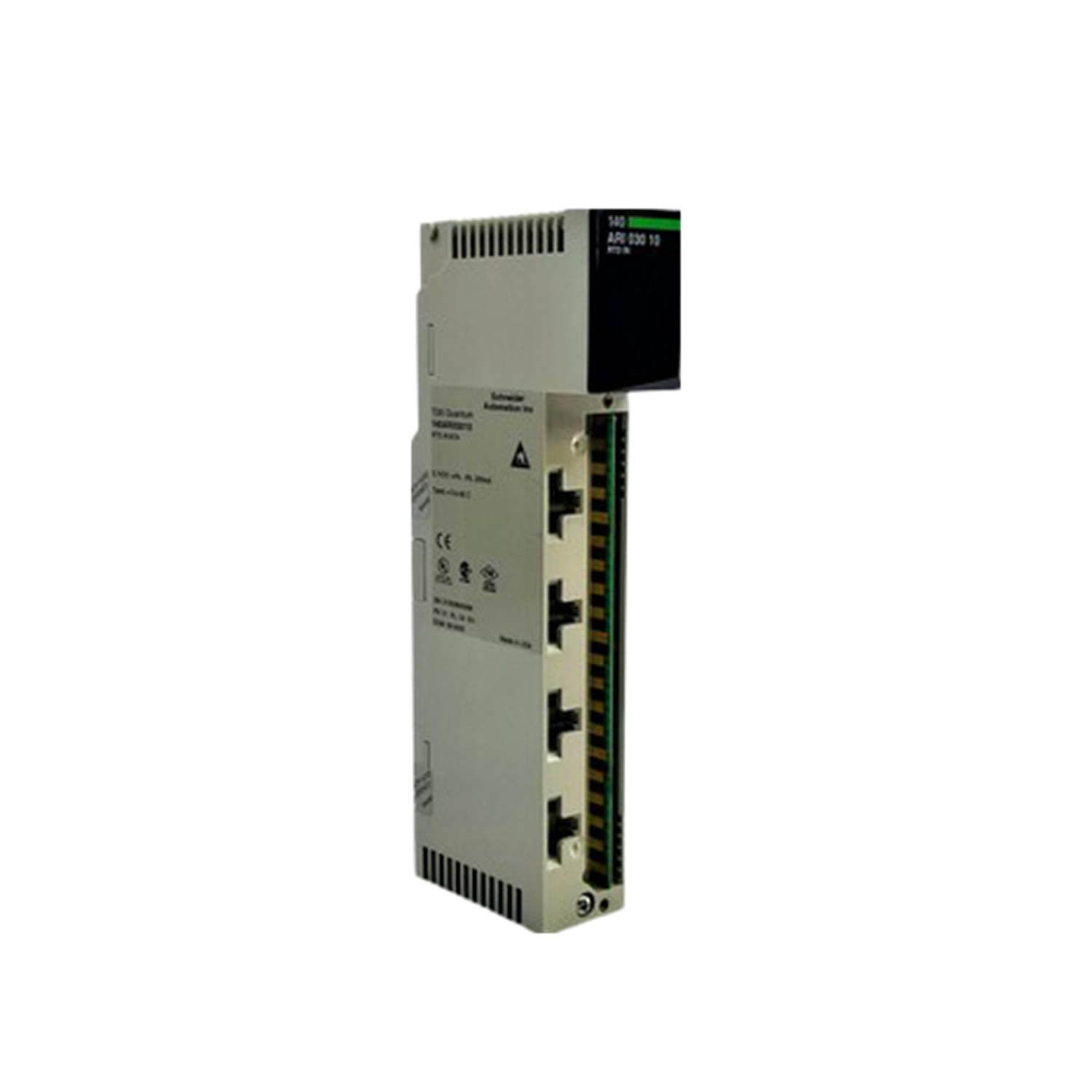

The 140ARI03010C is an Analogue input module in the Modicon Quantum automation platform range from Schneider Electric. It provides 8 channels and is built for signal interfacing within the Modicon Quantum systems.
Application & Technical Notes
As an analogue input module, the 140ARI03010C is intended for deployment in panel-based control cabinets and machine enclosures where the Modicon Quantum equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 8 channels, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the 140ARI03010C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Quantum rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Check live stock, lead time and request a quote for 140ARI03010C (opens in a new tab)
Frequently Asked Questions
What is the 140ARI03010C?
The 140ARI03010C is an analogue input module in the Modicon Quantum automation platform range from Schneider Electric. It is described by the manufacturer as: Analogue input module.
What are the key technical ratings of the 140ARI03010C?
Its published highlights include 8 channels, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the 140ARI03010C mounted or installed?
Installation follows the standard Modicon Quantum mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the 140ARI03010C compatible with my controller?
It is part of the Modicon Quantum family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the 140ARI03010C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The 140ARI03010C is an input module from Schneider Electric's Modicon Quantum series, designed specifically for handling analog input signals. It features a total of 8 analog inputs that are differential, with a resolution of 13 bits for accurate readings in real-time applications.
Description
| Note | Part of the Modicon Quantum series by Schneider Electric, the 140ARI03010C input module is designed for high-performance applications requiring analog signal processing. It accommodates 8 analog inputs, allowing for comprehensive data acquisition in various systems. The differential analog input type ensures enhanced accuracy, with a notable input resolution of 13 bits, yielding precise measurement capabilities. Local signaling is provided via built-in LEDs that support easy monitoring of the module's status. This module operates with a low power dissipation of only 1 watt, maximizing energy efficiency in embedded systems. The standard module format makes it easy to integrate into existing frameworks, with dimensions of 1.97 by 6.5 by 12.2 inches (50 x 165 x 310 mm). Weighing just 0.7 lbs (0.3 kg), this module is suitable for applications where weight is a consideration. It can function at significant altitudes, up to 5000 meters (16404 feet), and meets RoHS compliance for environmentally-conscious projects. The 140ARI03010C is an effective choice for automation tasks requiring reliable analog input handling and precise signal representation. |
|---|---|
| Range of Product | Modicon Quantum automation platform Product or Component Type Analogue input module |
Complementary
| Analogue input number | 8 |
|---|---|
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Temperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000 Temperature probe - 200...850 °C Pt 100, Pt 200, Pt 500, Pt 1000 Temperature probe - 60...180 °C Ni 100, Ni 200, Ni 500, Ni 1000 Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000 Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200 |
| Analogue input resolution | 13 bits |
| Input impedance | >= 10 MOhm |
| Absolute accuracy error | 0.1 °C |
| Linearity error | +/- 0.01 % full scale +/- 0.5 °C |
| Accuracy drift according to temperature | +/- 0.5 °C 77 °F (25 °C) +/- 0.9 °C 32…140 °F (0…60 °C) |
| Isolation between channels and bus | 1780 V AC 47...63 Hz 60 s 2500 V DC 60 s |
| Isolation between channels | 300 Vrms AC |
| Update time | 1200 ms 3 wires 640 ms 2 wires/4 wires |
| Fault type | Broken wire Overtacking scale |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault |
| Bus current requirement | 200 mA |
| Power dissipation in W | 1 W |
| Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
|---|---|
| Standards | UL 508 |
| CSA C22.2 No 142 | N/A |
| Product Certifications | FM Class 1 Division 2 cUL |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Ordering and shipping details
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 GTIN 3595860003430 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.0 in (5.0 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 12.2 in (31.0 cm) |
| Package weight(Lbs) | 16.3 oz (463.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
